JY-L Mid-span Tension Joint Rau Aluminium Conductor

JY-L Mid-span Tension Joint For Aluminum Conductor Featured Image

Lus piav qhia luv luv:

Xa email rau peb

Product Detail

Khoom cim npe

Nqe lus piav qhia:

JY-L Hom Splicing Lub Tes Tsho rau Aluminium Conductor yog tsim rau kev sib txuas & kho qhov hluav taws xob hluav taws xob hauv hluav taws xob hauv hluav taws xob.

Hom		Tsim nyog tus neeg xyuas pib			Qhov Loj (mm)			Slip zog (≥kN)	Qhov hnyav (kg)

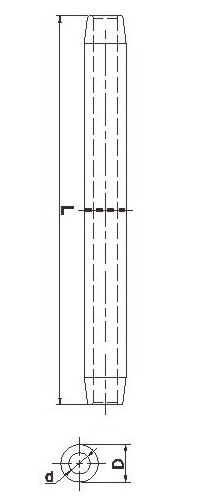

Hom		Specification	Sab nraud txoj kab uas hla (mm)	D		d	L	Slip zog (≥kN)	Qhov hnyav (kg)
	JY-150L	LJ-150	15.75 Nws	30		17.5 Nws	280	22	0.35 Nws
	JY-185L	LJ-185	17.50 Nws	32		19.0 Nws	310	27	0.44 ib
	JY-210L	LJ-210	18.50 Nws	34		20.0 Nws	330	31	0.6
	JY-240L	LJ-240	20.00 Nws	36		21.5 ib	350	34	0.65 ib
	JY-300L	LJ-300	22.40 Nws	40		24.0 Nws	390	45	0.85 ib
	JY-400L	LJ-400	25.90 Nws	45		27.5 ib	450	58	1.21
	JY-500L	LJ-500	29.12 Nws	52		30.5 ib	510	73	1.92 ib
	JY-630L	LJ-630	32.67 Nws	60		34.0 Nws	570 ib	87	2.95 ib
	JY-800L	LJ-800	36.90 Nws	65		38.5 ib	650	110	3.75 ib
